#57 Stone for Drainage and Pads in Massachusetts

Tip a bucket of #57 stone onto a tight town driveway and it rattles rather than slumps. Nothing puffs up off the pile, nothing sticks to the shovel, and you can see daylight between the pieces where they rest against each other. That is the whole reason it gets ordered for wet ground. On the dense lower till that lies under most of eastern and central Massachusetts, water has nowhere to go once it reaches the surface, and the gaps in a stone this size are the fastest route out.

A dust-free pile on a tight town driveway

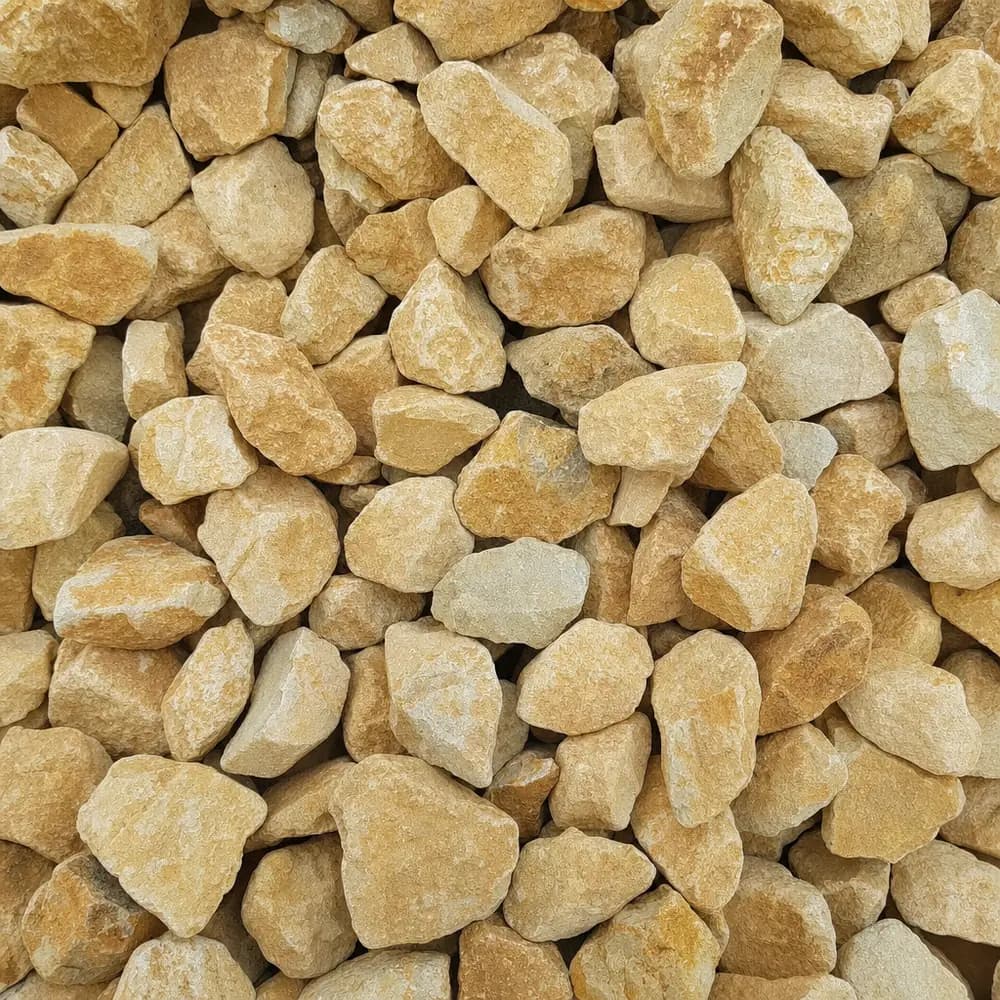

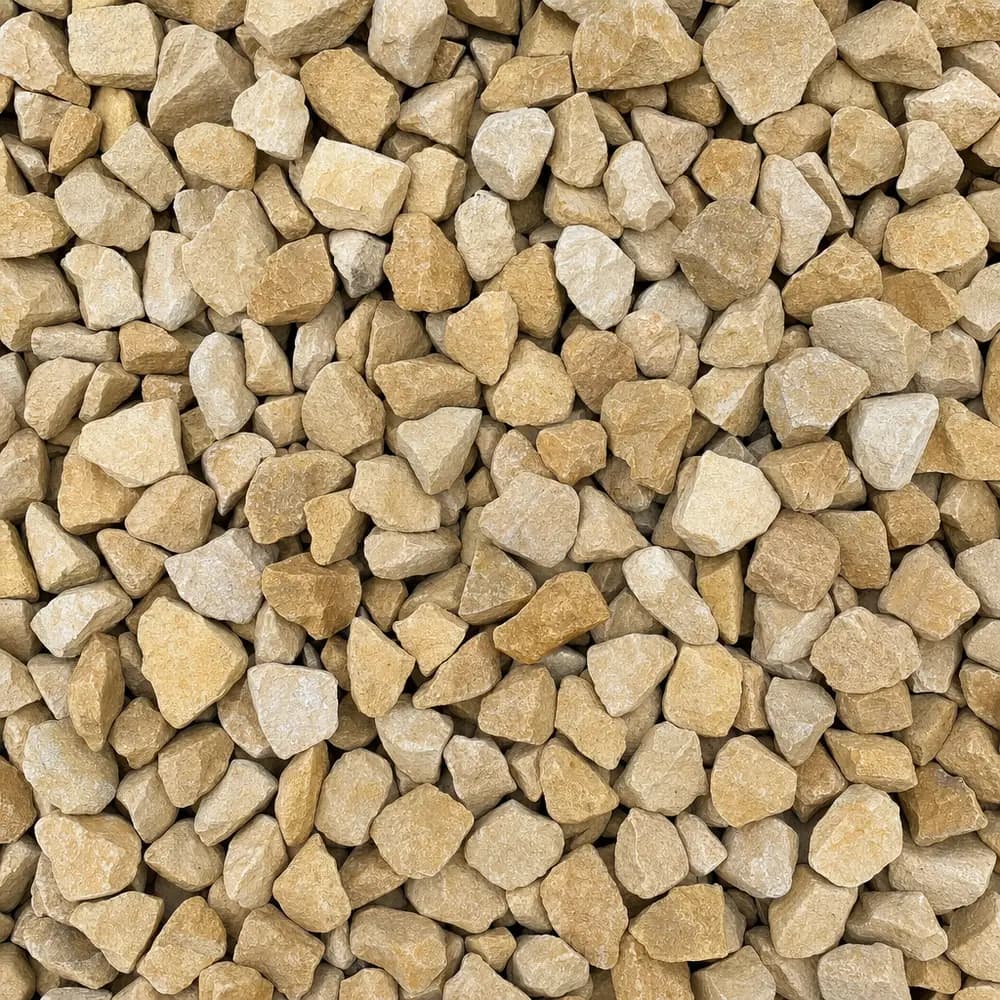

Individual pieces run 3/16 inch to 1 inch, angular rather than rounded, and the load arrives with the fines washed off. Grab a handful and your glove stays clean. Pour it into a trench and it finds its own level with almost no persuasion.

The open space between the pieces is doing the work. Water moves through it under gravity instead of soaking into anything, and because there are no fines to migrate, the layer does not silt up on its own. What silts it up is soil finding its way in from the sides, which is the single most common reason a drain here stops working after a few winters.

#57 stone against 3/4 inch crushed stone, #67 and crusher run

The nearest lookalikes are genuinely close, so the comparison is worth making carefully.

The important split in that table is the last row. Crusher run looks similar at a glance and behaves in the opposite way, closing up under compaction instead of staying open. Putting it in a drain is the mistake that costs a weekend twice.

Between the washed stones the differences are smaller than most buyers expect. If a plan or an engineer calls for a particular designation, use that one. If nobody has specified anything, the practical question is what the pipe and the trench need.

Drainage behind a wall, under a hot tub, along a dog run

Three jobs cover most of what leaves the yard.

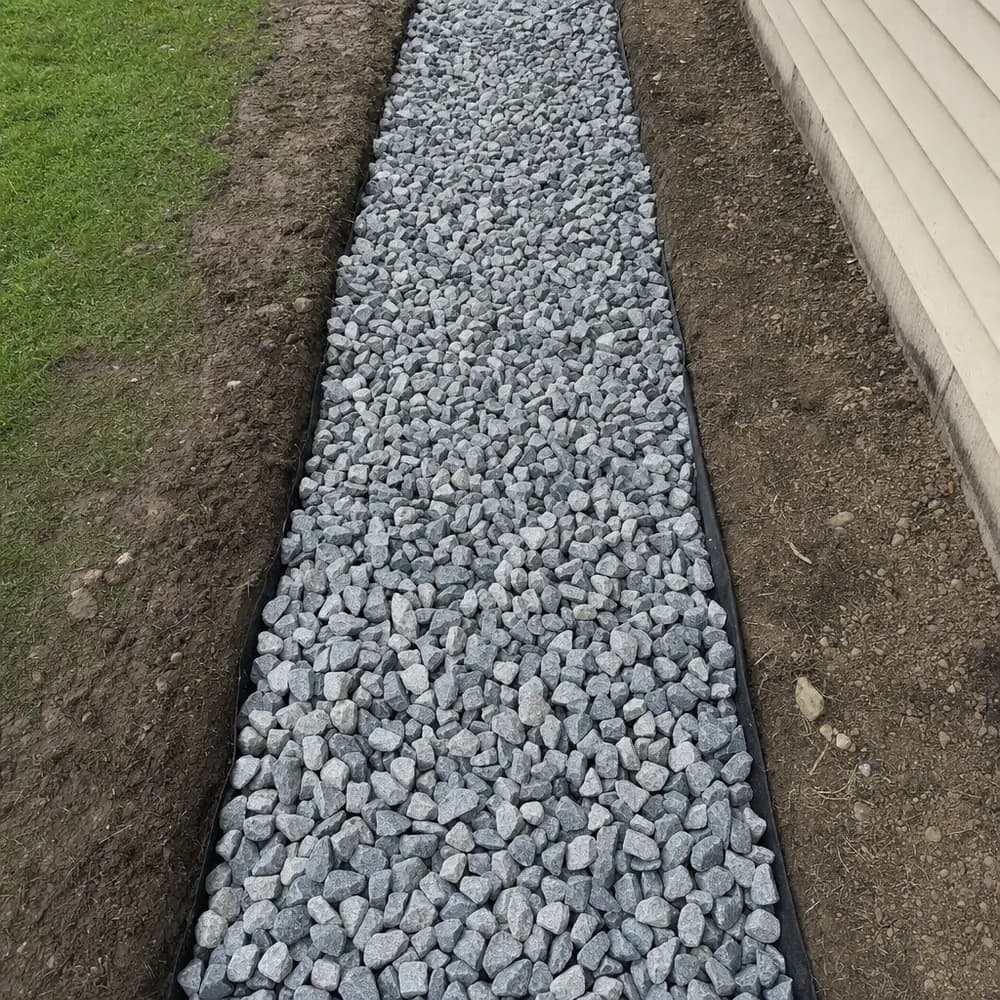

Wall backfill and perimeter drains are the largest share. A chimney of clean stone behind a block wall lets water down and out instead of building pressure against the back of it, and a curtain drain across a slope intercepts the water that would otherwise arrive at a foundation.

A hot tub pad is the second. A filled tub is a serious point load, and a compacted stone pad spreads it while letting water out from under the shell rather than trapping it against a frozen slab edge in February.

A side-yard dog run is the third, with a caveat. Stone this size is coarse under paws and coarse to scoop. It works well as the drainage layer underneath, with a finer surface over it, and Pea Stone is the more comfortable finish if the dogs are on it daily.

Where new lawn prep sends you somewhere else

New lawn prep is worth saying plainly: this is not the material. Turf needs a rooting depth of soil, and stone buried under a lawn sets up a hard layer that grass roots cannot pass and mowers eventually find. Where the site is soaking wet, the stone goes in a drain trench and the lawn goes over screened loam above it. Top Soil does the growing.

Depth over dense till, and what goes under the stone

The measuring guide on this site works from two inches for landscaping and four inches for driveways, and both figures are sensible starting points here. A pad under a structure sits at the deeper end. A decorative or surface layer sits at the shallow end.

Two things underneath matter more than the exact depth. On soft or wet subgrade, put geotextile between soil and stone. Without it, the till pumps up into the voids under load and the layer you paid for fills with mud. And on any drain, wrap the stone so soil cannot enter from the sides, because that is where clogging starts.

An 8 by 8 hot tub pad in MetroWest, counted out

Two worked examples, both hypothetical.

An 8 foot by 8 foot hot tub pad at four inches:

• Area: 8 x 8 = 64 square feet
• Depth: 4 / 12 = 0.333 ft
• Volume: 64 x 0.333 = 21.3 cubic feet
• Cubic yards: 21.3 / 27 = 0.79

Round up, keep the five percent the stone calculator adds by default, and it is a shade over eight tenths of a yard. At six inches the same pad runs 64 x 0.5 = 32 cubic feet, or 32 / 27 = 1.19 cubic yards.

A 4 foot by 30 foot dog run drainage layer at three inches:

• Area: 4 x 30 = 120 square feet
• Depth: 3 / 12 = 0.25 ft
• Volume: 120 x 0.25 = 30 cubic feet
• Cubic yards: 30 / 27 = 1.11

Small jobs, both of them, which is typical for washed stone. This site publishes roughly 2,800 lb per cubic yard for #57 crushed stone, about 1.40 tons per yard, so the four inch pad is 0.79 x 1.40 = 1.1 tons and the dog run 1.11 x 1.40 = 1.55 tons, both approximate. Confirm either one in the stone calculator before ordering by the ton.

When the number is settled, pick a quantity and a delivery date on this page, or send the measurements over from the contact page if the shape is awkward enough that you would rather someone checked it. Delivery is set at checkout by ZIP code, and the driver needs a spot that is clear and reachable.
